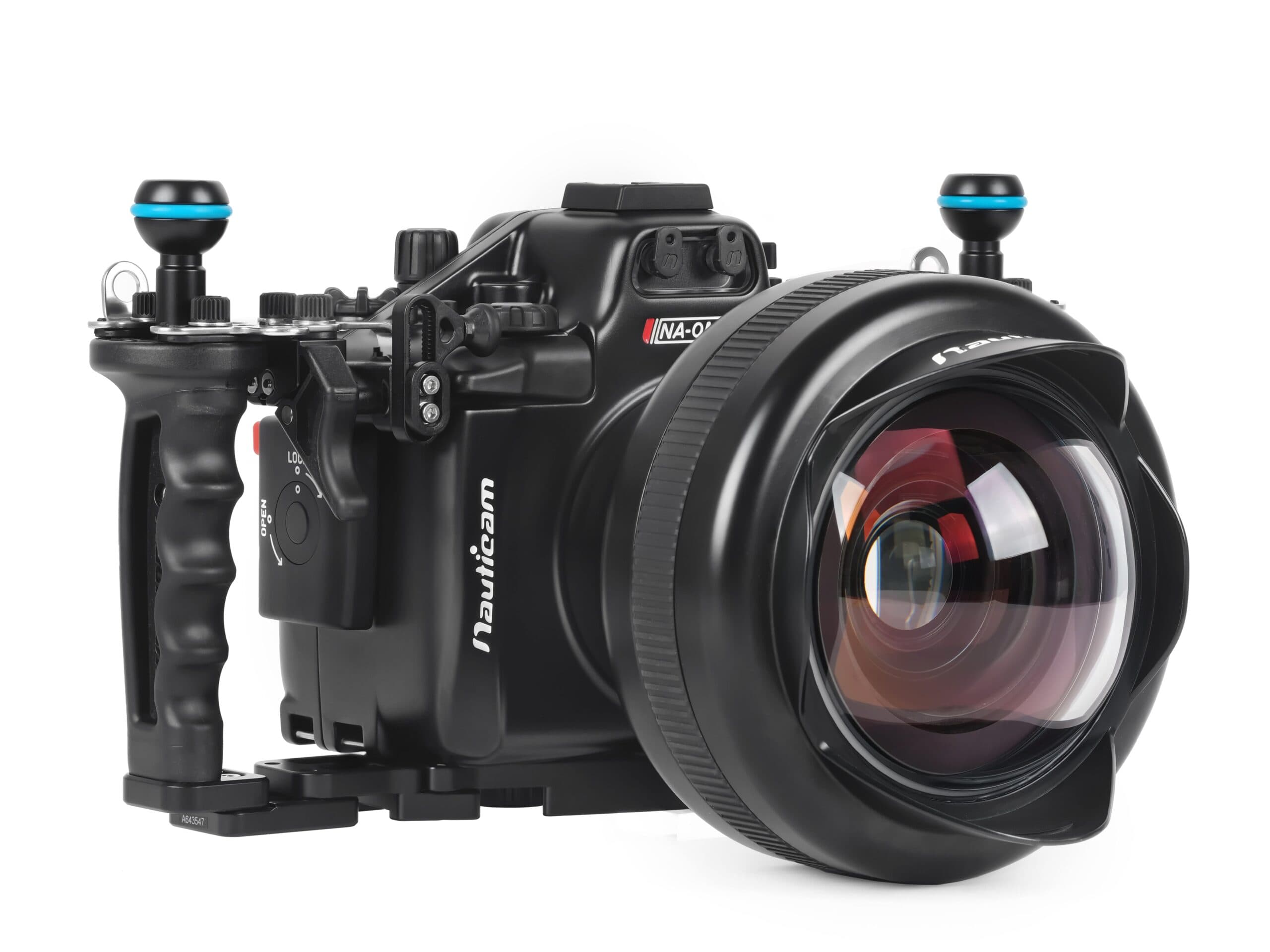

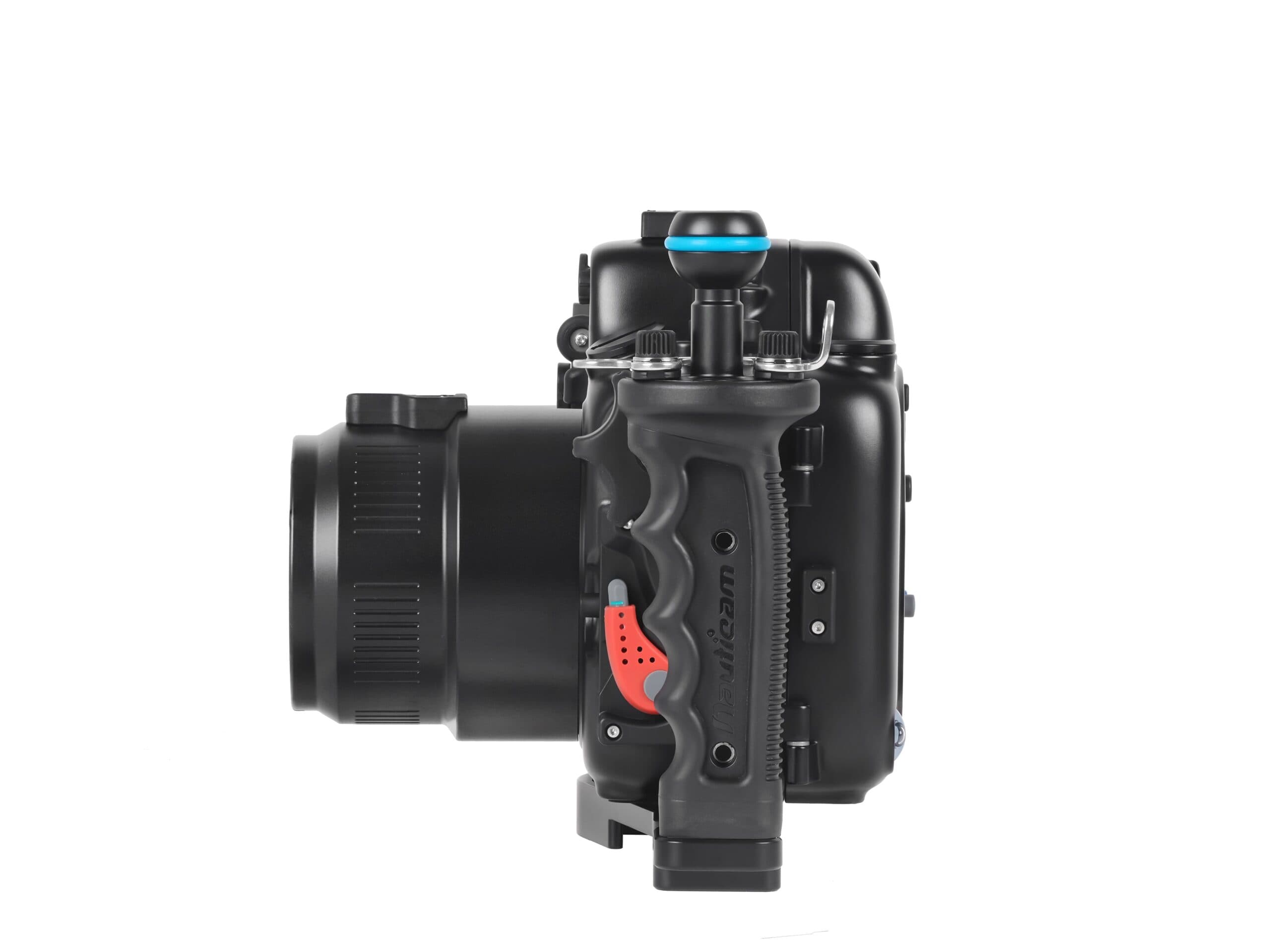

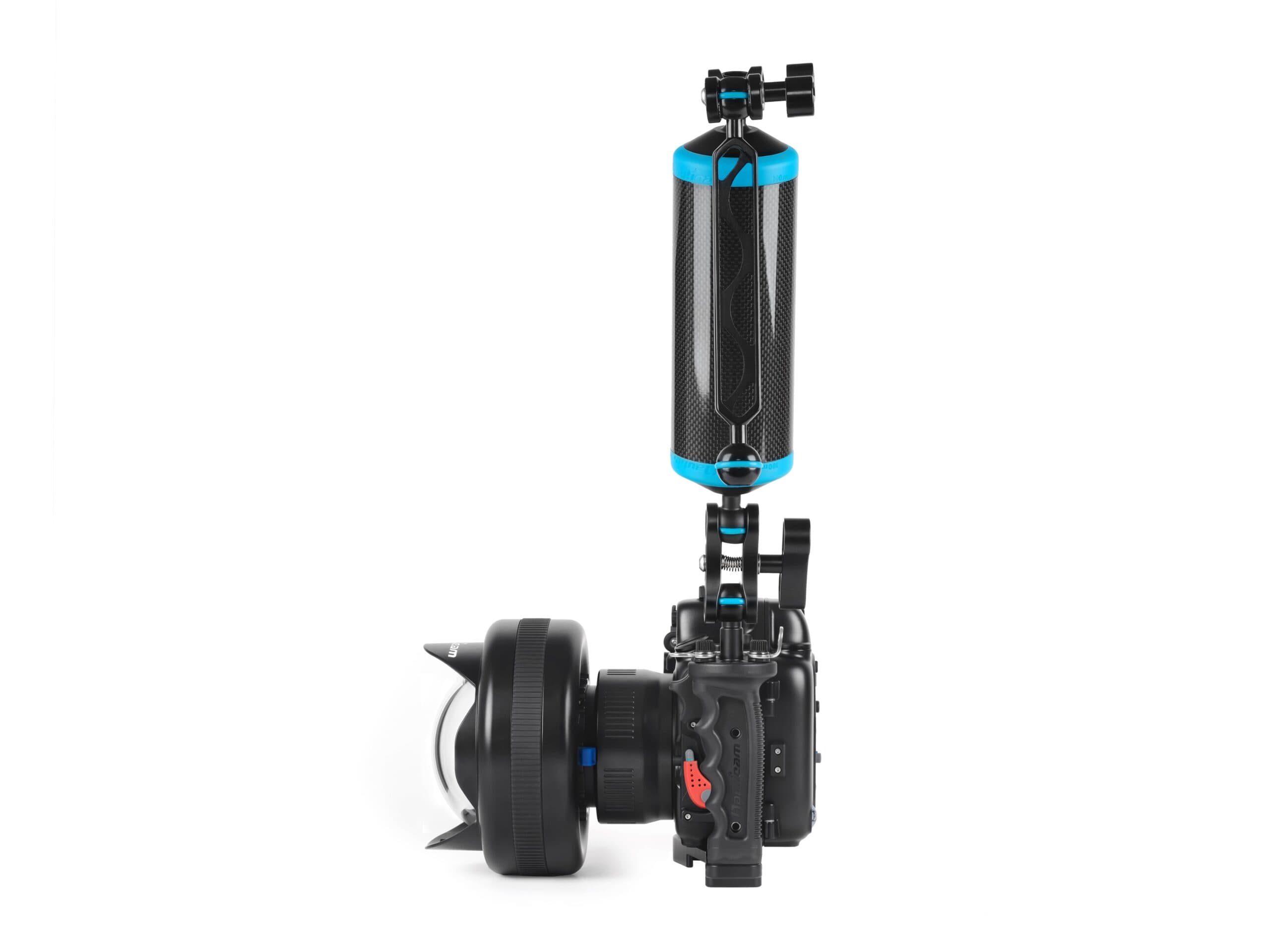

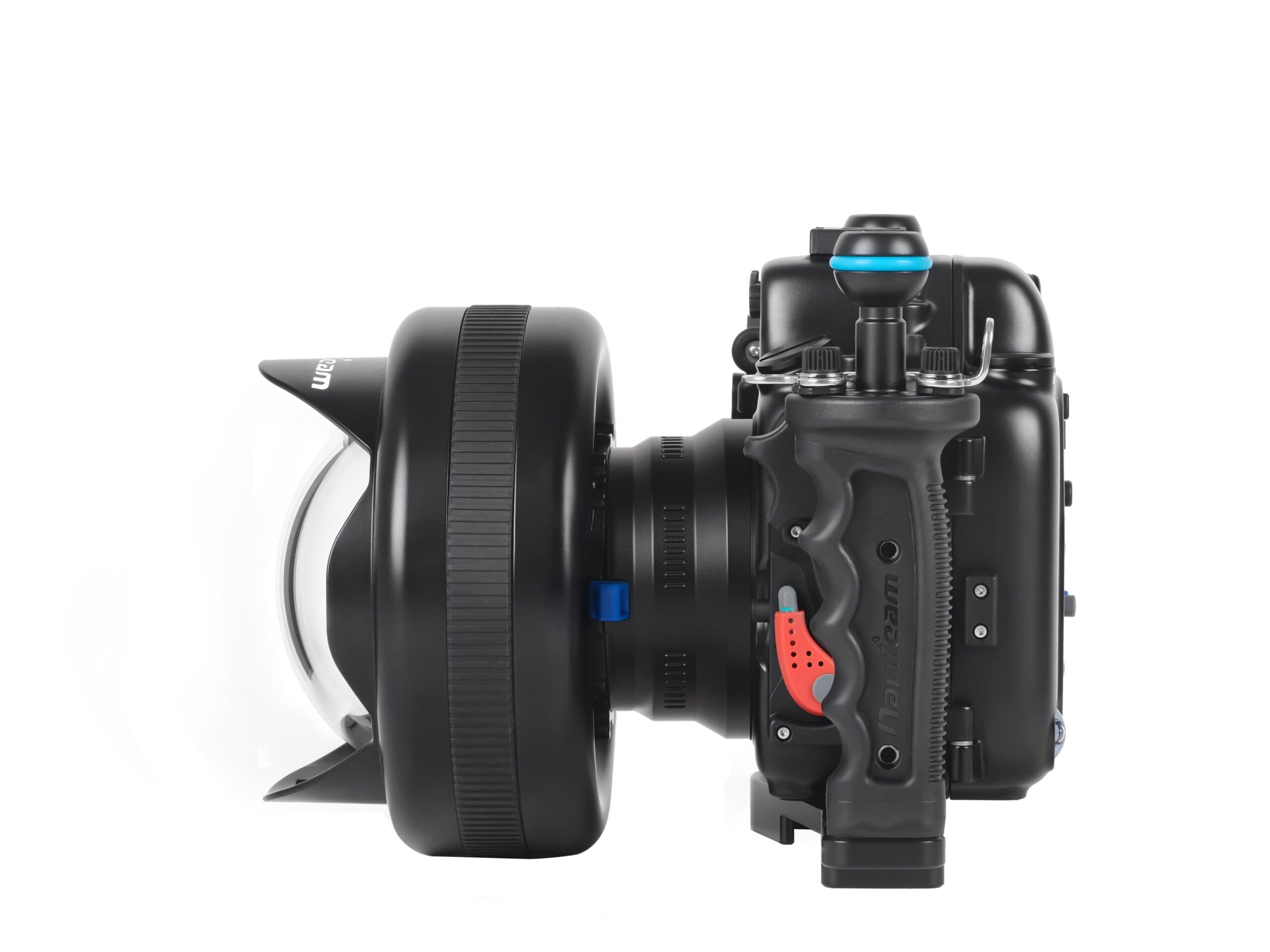

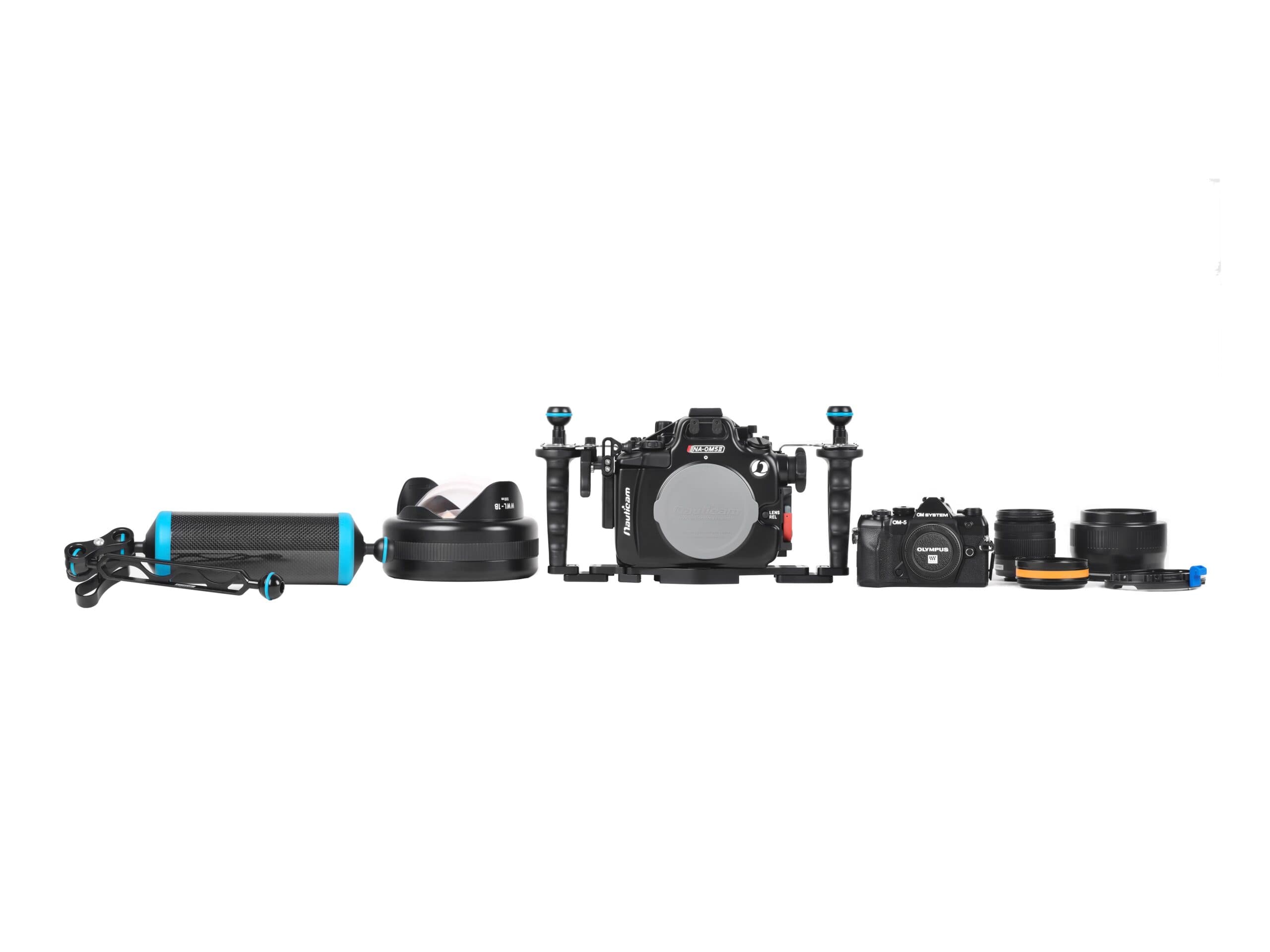

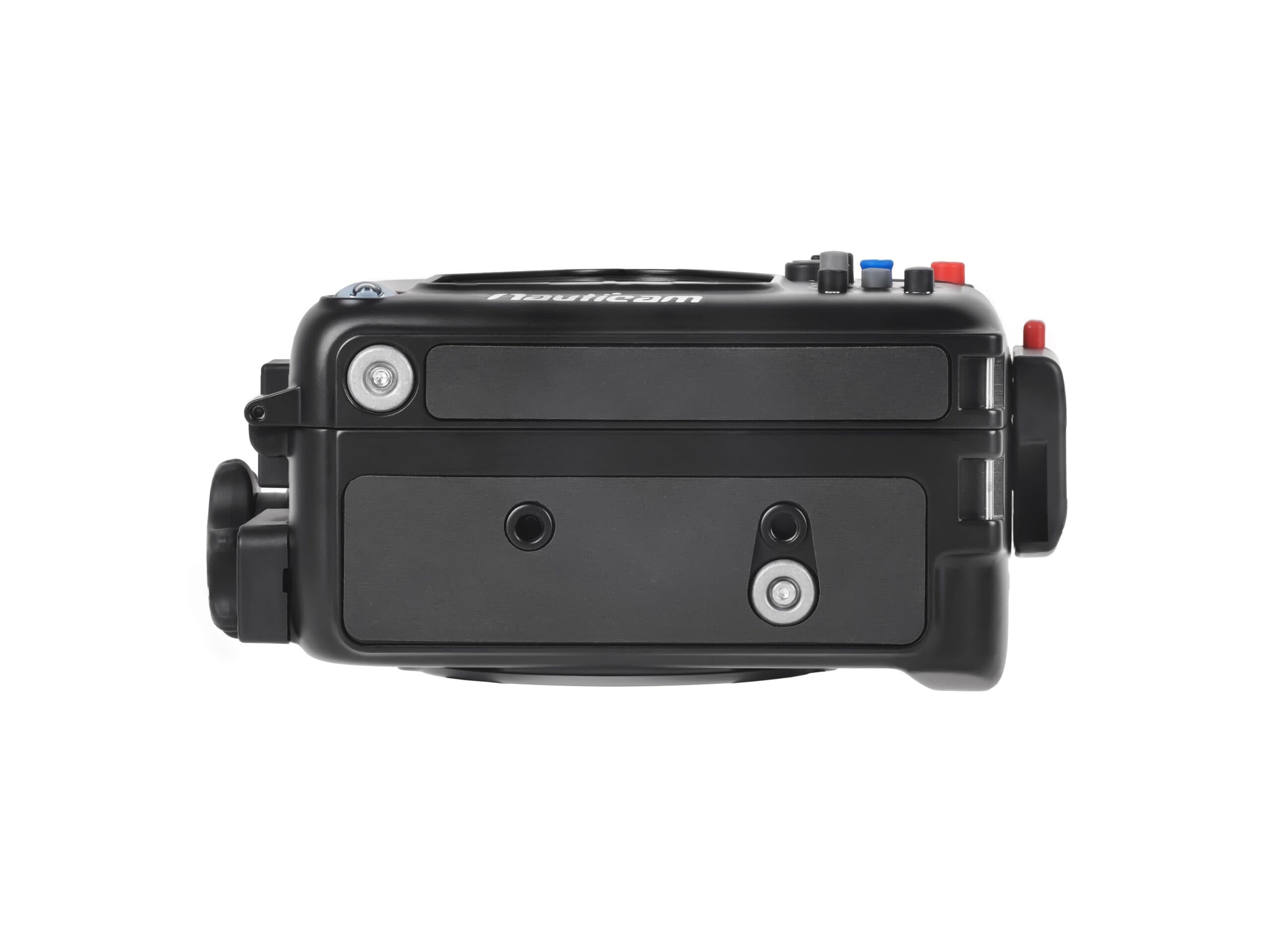

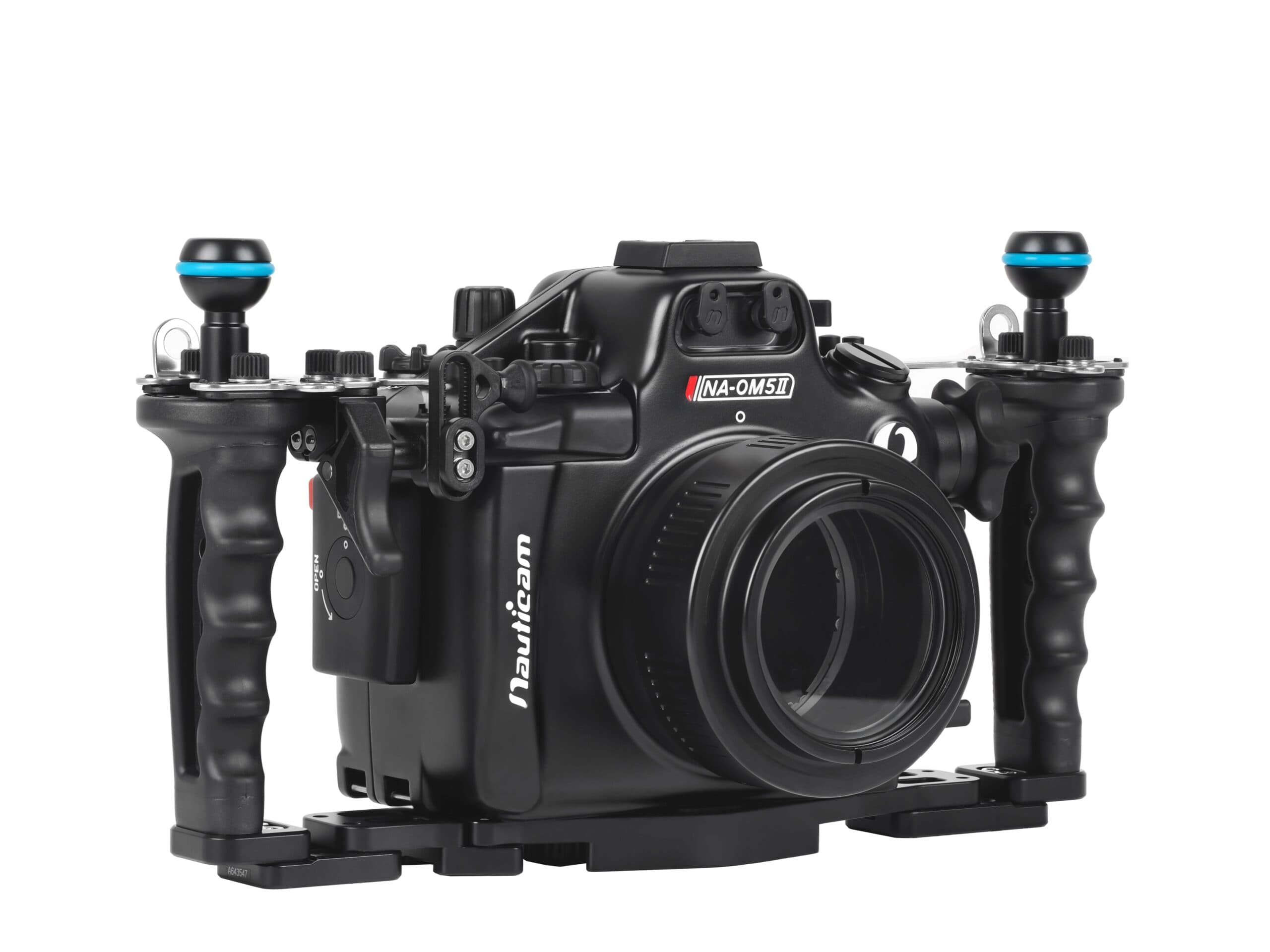

NA-OM5II Housing for OM SYSTEM OM-5II Camera

OM SYSTEM OM-5 Mark II Camera

The OM-5 Mark II, renowned for its compact and lightweight design, is an ideal choice for travel photographers. It boasts a 20.4MP Live MOS sensor, a TruePic IX image processor, and robust 5-axis in-body image stabilization and exceptional weather sealing. Convenient charging is now possible with the introduction of a USB-C port. The OM-5 Mark II also incorporates the user-friendly menu system initially introduced on the OM-1 Mark II. For video recording, two new color profiles, OM Cinema 1 and OM Cinema 2, are available, allowing videographers to create cinematic video without specialized processing or grading. DCI 4K is supported at 24p, while UHD 4K is supported at frame rates up to 30p.

Key Features

• 20.4MP Live MOS Micro Four Thirds Sensor
• TruePic IX Image Processor
• DCI 4K/24p & UHD 4K/30p Video Recording
• 5-Axis Sensor-Shift Image Stabilization
• IP53-Rated, Weather-Sealed Construction
• 121-Point Hybrid Contrast + Phase AF
• SD Memory Card Slot
• 2.36m-Dot Eye-Level OLED EVF
• 3.0" 1.04m-Dot Vari-Angle Touchscreen
• Wi-Fi and Bluetooth

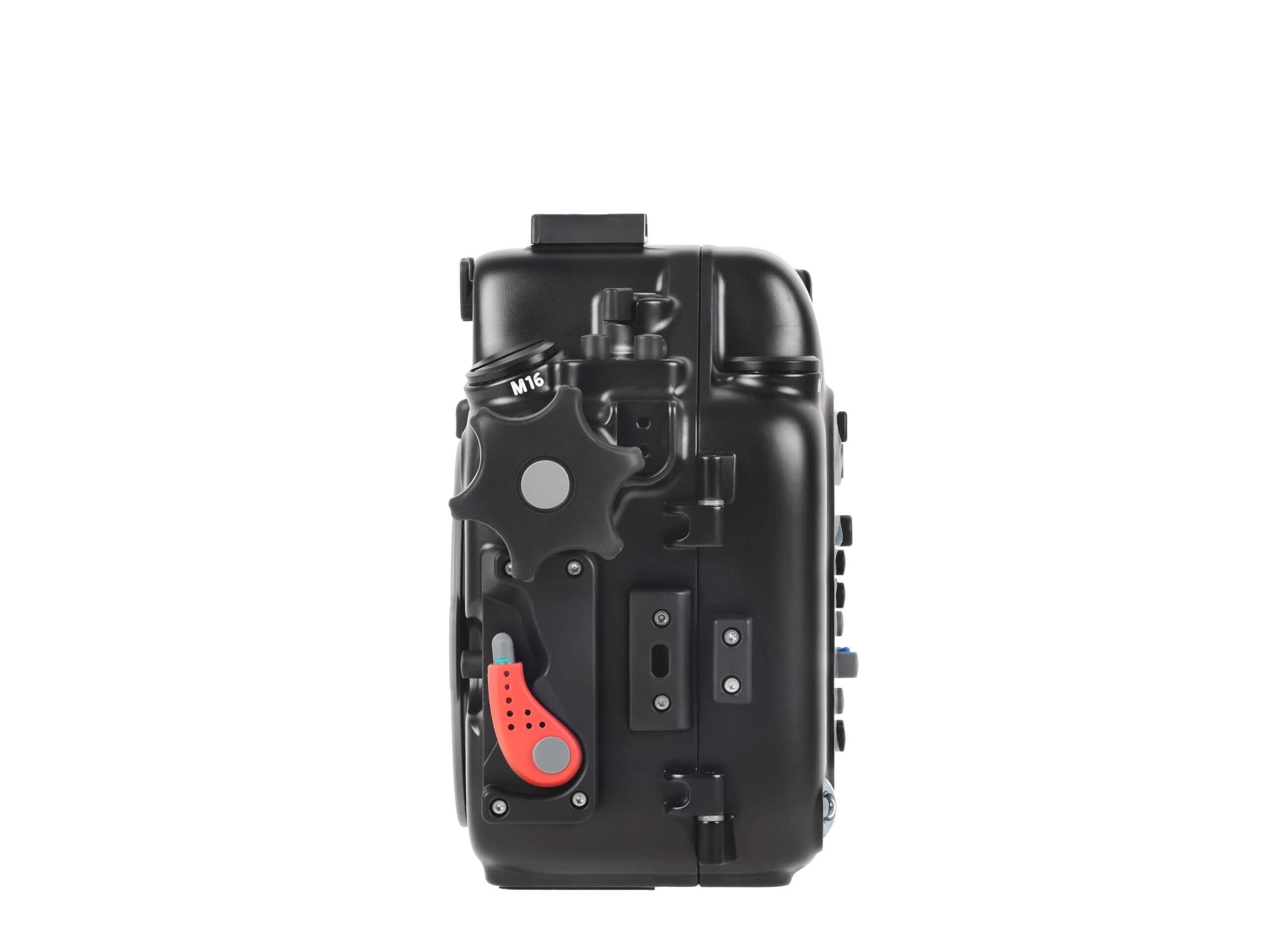

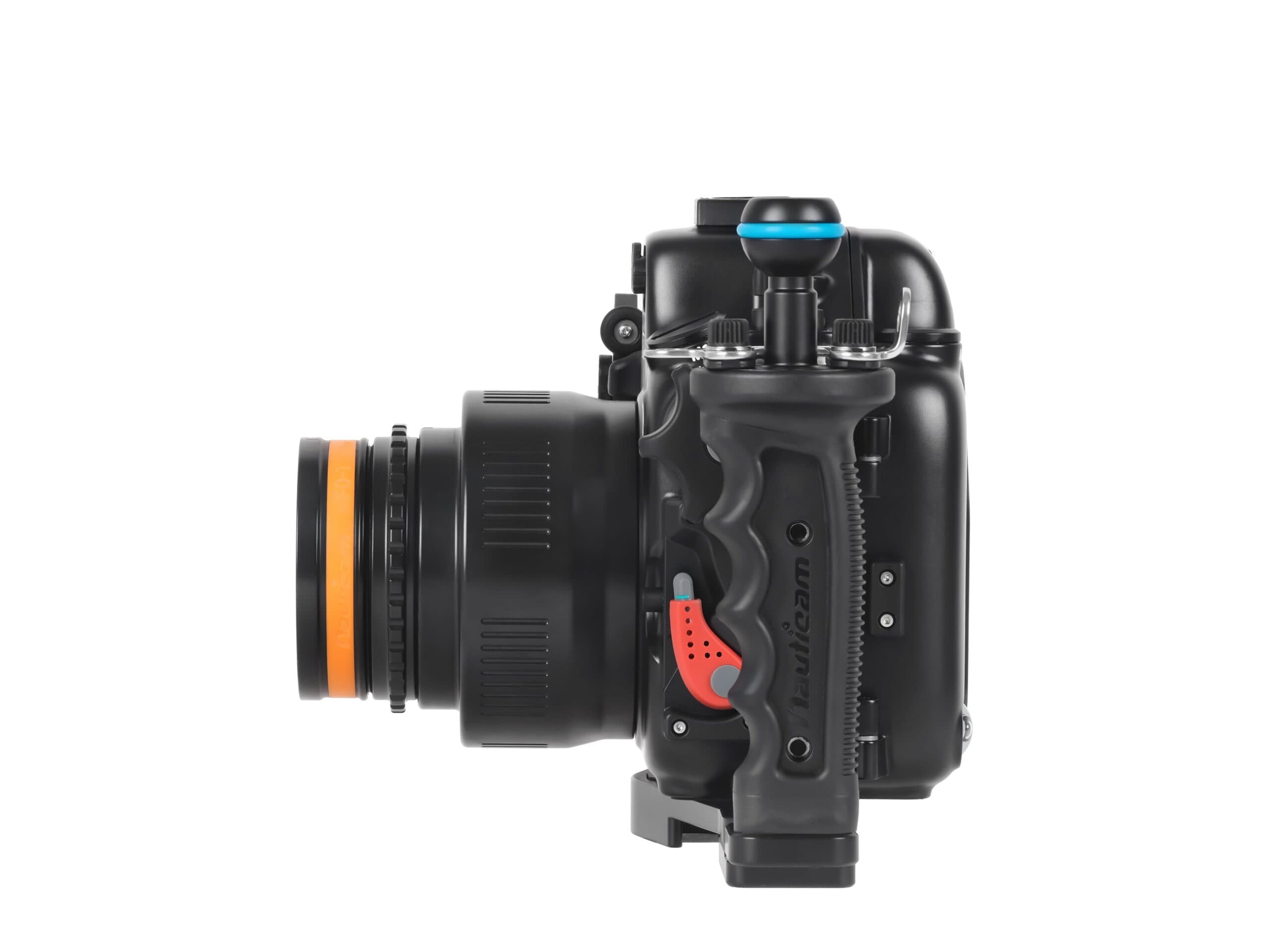

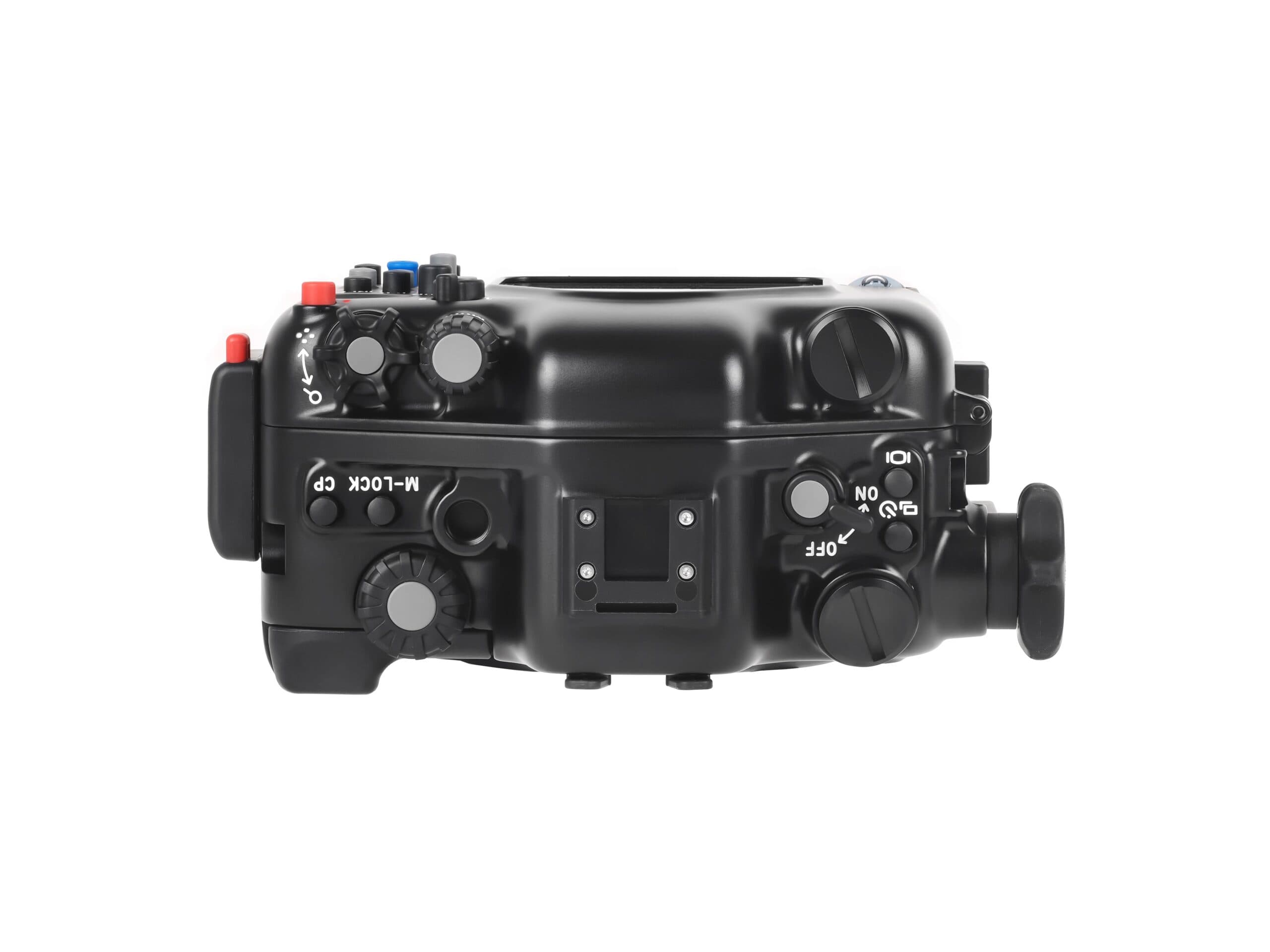

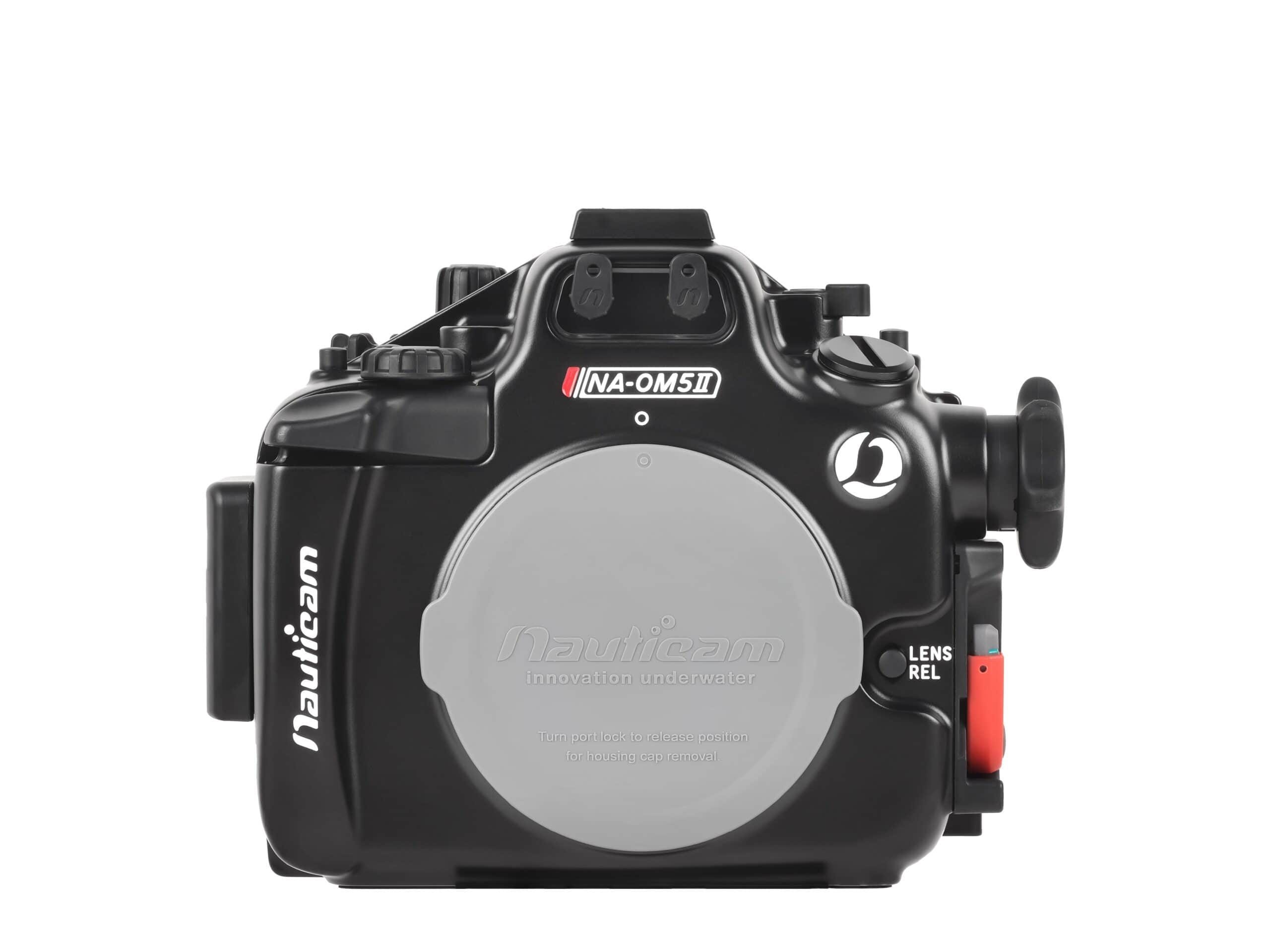

NA-OM5II Housing

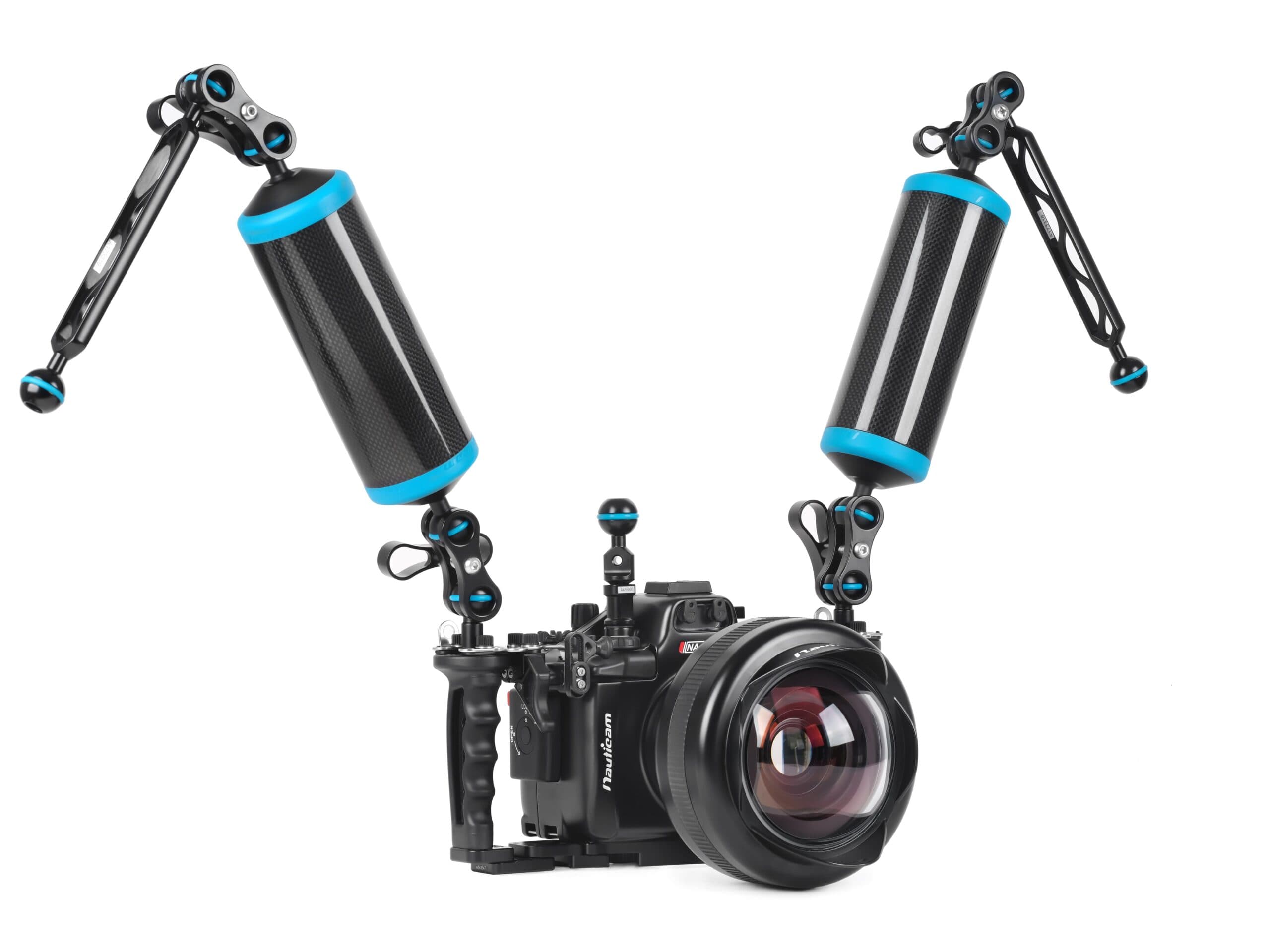

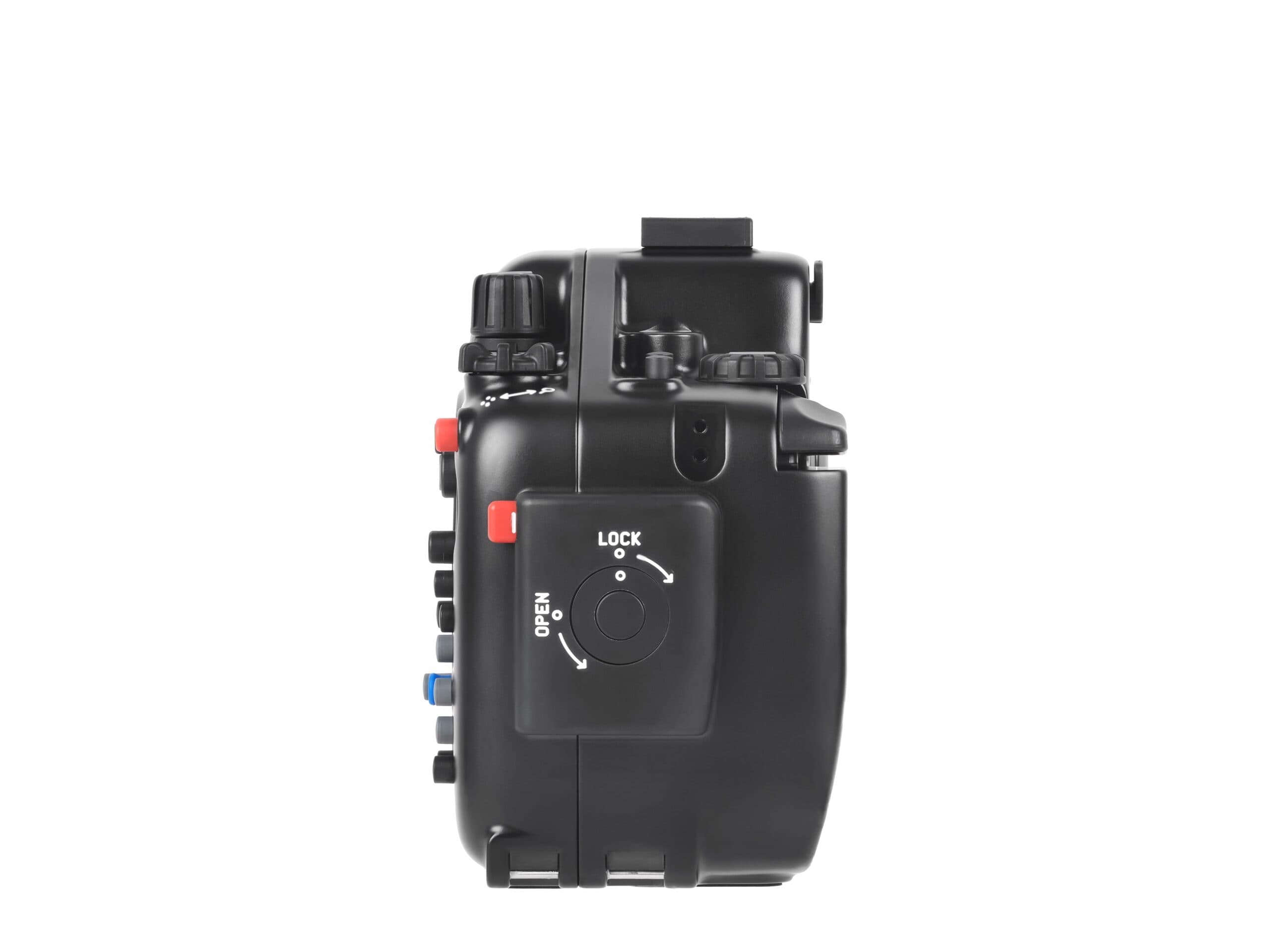

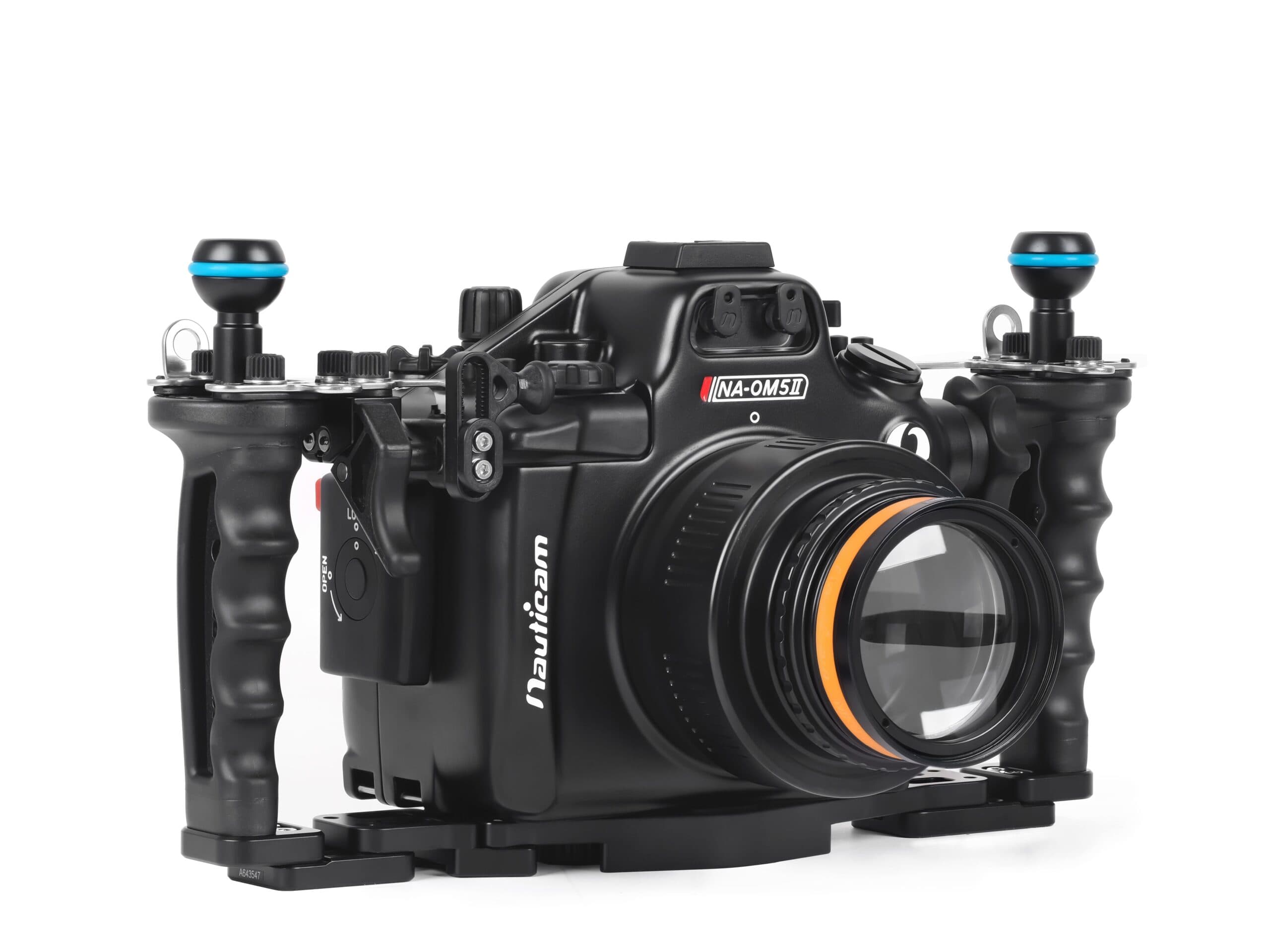

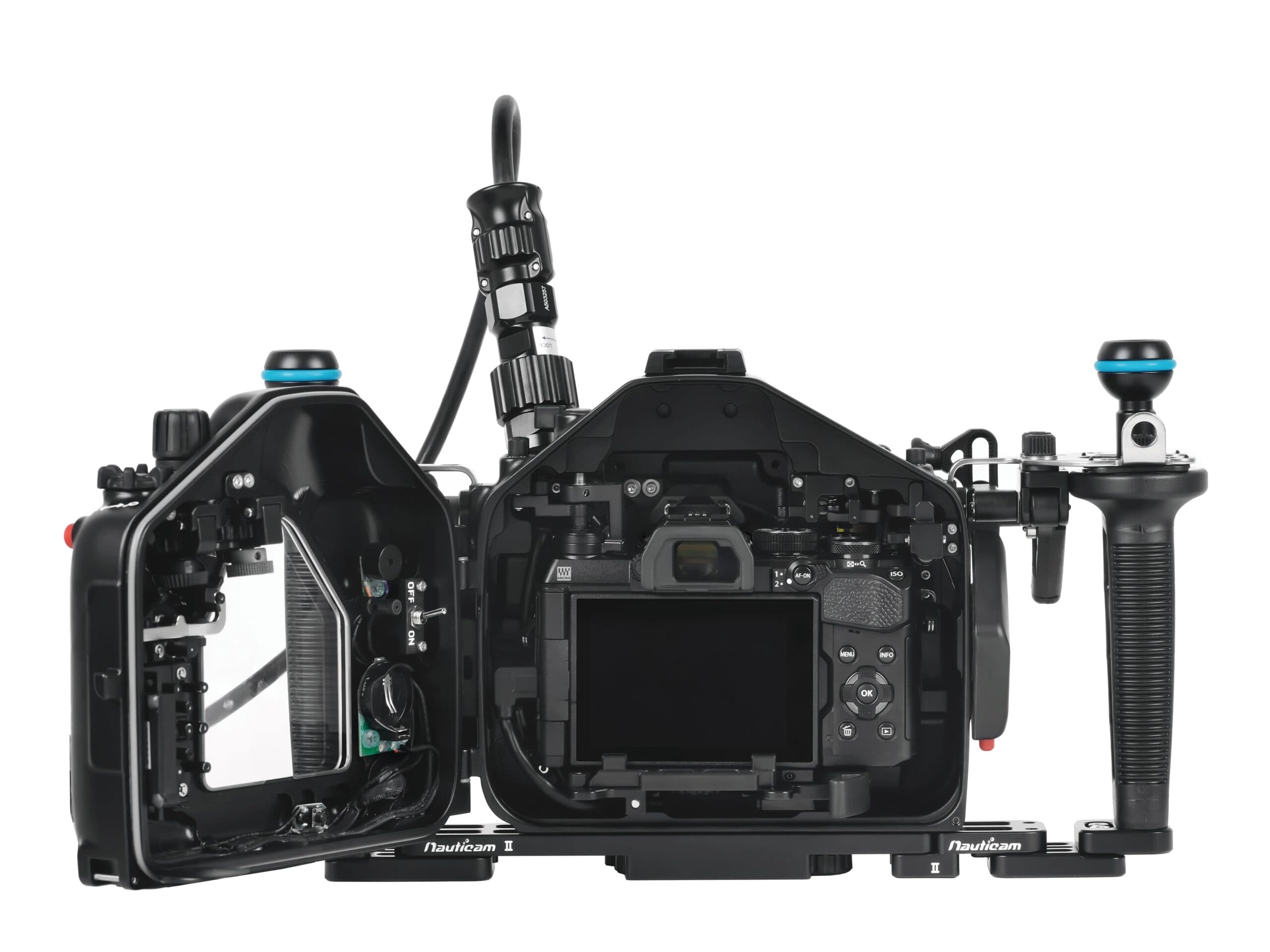

The NA-OM5II adheres to Nauticam’s Mission Control philosophy, ensuring accessible and intuitive control for critical functions. These include Front & Rear dials, REC, AF-ON, CP, Fn1 and Fn2 Lever. Nauticam’s Port locking system facilitates rapid and seamless lens changes. Battery and memory card replacements are equally effortless thanks to the rotary-style housing lock and lens release button. An optional M14 vacuum valve unlocks the full capabilities of the pre-installed Vacuum Check and Leak Detection System. The NA-OM5II LCD window, available as an optional feature, enables the utilization of Nauticam Full Frame viewfinders for enhanced viewing. For lighting and accessories, the housing incorporates an M10 treaded mounting point, a cold shoe mount, and optional handles and tray equipped with strobe mounting balls.

FLASH TRIGGERING

For high-speed manual flash triggering, the optional Mini Flash Trigger for Olympus (26306) can be used. The trigger is powered by onboard coin-style lithium batteries, with thousands of flashes available from a set. Electrical triggering of legacy wired strobe systems is possible via an electrical Nikonos style bulkhead (optional).

PREMIUM PROFESSIONAL OPTICS

A camera system is only as good as the optics placed in front of it. Nauticam's extensive line of dome and flat ports support a wide variety of Micro Four Thirds lenses. For even higher image quality and versatility, the NA-OM5II can be used in conjunction with Nauticam's lineup of Water Contact Optics. For example, with the Olympus 14-42mm f/3.5-5.6 EZ Lens, the Nauticam WWL-1 provides a full zoom through ultra wide-angle 130º field of view.

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is standard equipment on the NA-OM5II. When combined with the optional M14 Vacuum Valve II (PN 25624), this monitoring system continuously provides updates on the water tightness and safety of the housing. A simple coded LED lighting system informs the user if the vacuum is functioning properly or if the housing is losing vacuum. Leak detection is integrated into the same circuit, so if water enters the housing, an audible and visual indication will be given.
